In many cases of sheet metal processing, it is necessary to install other parts or components on the part, such as buttons, switches, or other electronic devices on the panel, it is also possible to connect between different sheet metals. In order to more convenient and reliable installation connection, sheet metal technology is often used in a riveting process.

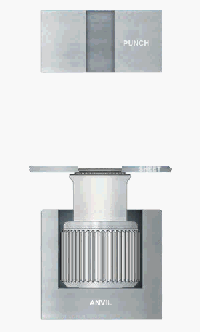

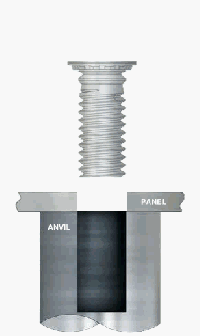

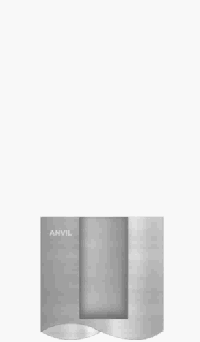

The principle is to press into the preset hole of the sheet metal through the embossing teeth. Generally speaking, the diameter of the preset hole is slightly smaller than the embossing teeth of the riveting nut, through the pressure to press riveting nut teeth into the plate to lead to plastic deformation of the hole around the deformation is squeezed into the guide groove, thus creating a locking effect.
1. Riveting nut
2. Compression screws
3. Crimp studs
4. Capture-screws
With the riveting process, there is a need to install the occasion in the sheet metal, the following advantages:
Direct installation can greatly improve efficiency.
2. Reduce the number of screw and nut knocks on the sheet metal, reducing the number of parts.
3. Relative to other processes, precision is higher than percussion.

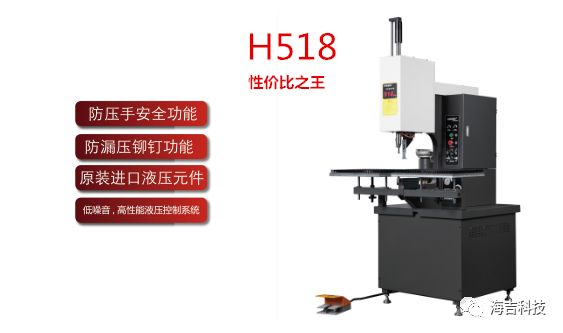

On the market a cost-effective, preferred technology H518 Intelligent Press Riveter, with riveting features are:
Bulge molding, turn over the tooth extraction, no riveting connection, piercing lock riveting connection and so on.

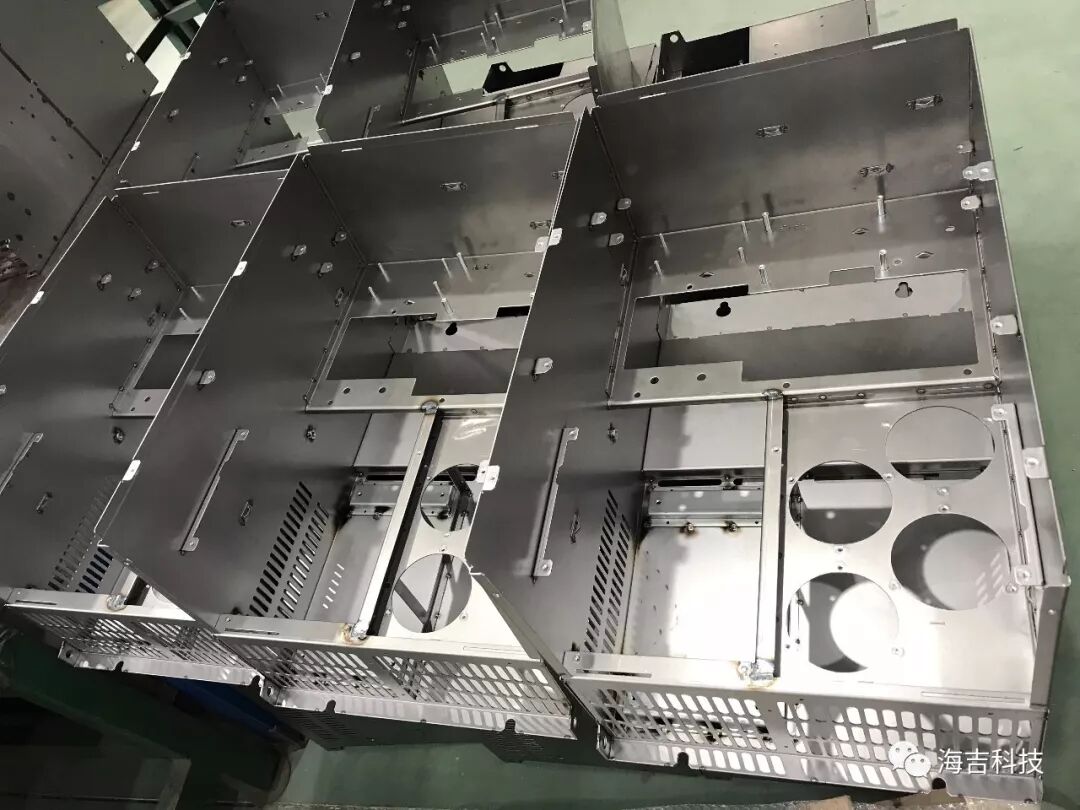

The drawing of the finished product of the parts
